If you own a 2010 to 2023 Lexus GX460 and you want 17-inch wheels, you are in a crowded line. Owners downsize for taller sidewalls, cheaper 33-inch tires, and a wider choice of all-terrains. The problem is the GX460’s front brakes. The rotors are 338 mm across and the fixed 4-piston calipers are bulky enough that plenty of 17s will not fit over them.[1][2] This guide sorts out which 17s clear, which ones hit, and how to test-fit one wheel before you spend money on tires.
Why 17s are worth the trouble on a GX460
Three reasons come up in every owner thread. First, sidewall. A 285/70R17 is roughly a 33-inch tire with a tall sidewall that soaks up trail chatter and airs down better than a 33 on an 18. Second, price and selection. The 17-inch all-terrain market is bigger, and tires like the 285/70R17 and 265/70R17 are usually cheaper than their 18-inch equivalents. Third, the GX460 ships on 18s (19s on 2020-2023 Luxury and Sport Design trucks), so you have no factory 17 option to fall back on.
The tradeoff is fitment work. Not every 17 clears the front calipers, and the wheels that do are specific about backspacing. The rest of this guide is about narrowing the field.

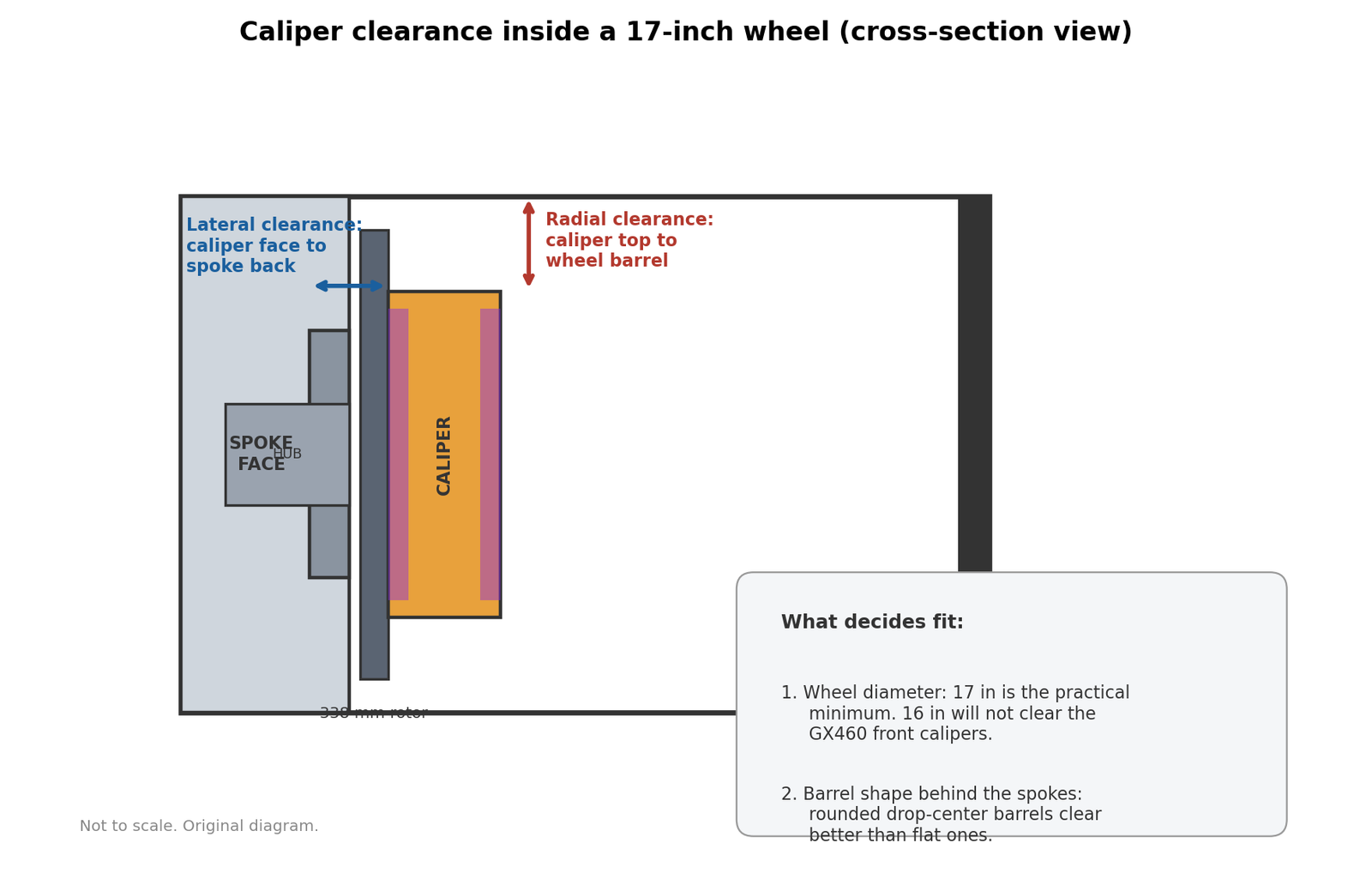

Why the GX460 is picky (and the GX470 is not)
The GX470 (2003-2009) and the GX460 (2010-2023) both use 338 mm front rotors.[3] The GX460’s rotors are thicker (32 mm versus 28 mm on the GX470), but the diameter is the same. So the 17-inch clearance problem on the GX460 is not the rotor. It is the caliper. The GX460’s fixed 4-piston front calipers have a different, bulkier profile than the GX470’s, and that is what 17-inch wheels run into.
Practical consequences:
- 16-inch wheels do not clear GX460 front calipers. Owners have tried. The barrel hits the caliper. Do not grind the caliper to make it fit. That is how you turn a brake problem into a brake failure.
- On a GX470, 17s are a non-issue. The stock GX470 wheels are 17s, and the aftermarket 17 market for the 120-series platform is huge. If you are shopping for a GX470, this guide’s clearance warnings do not apply to you.
- The GX550 (2024+) runs even bigger front brakes: 354 mm rotors with opposed 4-piston calipers, and no 17-inch wheel clears them. Its smallest factory wheel is an 18. This guide does not cover the GX550, and nothing here carries over.[8]
17-inch wheels confirmed to clear GX460 brakes
These are fits reported by owners who actually bolted the wheel on and drove. Test-fit your own truck anyway, because spoke profiles change between production runs, but this is the short list with the best evidence.
| Wheel | Size | Offset | Backspacing | Evidence |
|---|---|---|---|---|
| GX470 OEM 17 | 17×7.5 | +25 mm | 5-3/16 in (owner measured) | Multiple GX460 owners run these with 265/70R17[4] |
| 4Runner TRD Pro (PTR56-89210-F2) | 17×7 | +4 mm | ~4.16 in | Bolts on, no spacers, with 265/70R17[5] |
| Method MR701 | 17×8.5 | 0 mm | 4.75 in | Test-fit on a GX460 with 285/70R17 |
| Icon Alloys Vector 6 | 17×8.5 | 0 mm | 4.8 in | Fitted on a 2022 GX460 with 265/70R17, stock suspension |
| SCS Ray10 | 17×8.5 | -10 mm | 4.36 in | Fitted on a 2012 GX460 |
| Level 8 (various) | 17 in | various | various | Fitted on a 2013 GX460 |
| Evo Corse | 17×8 | 0 mm | 4.75 in | Fitted on a 2017 GX460 |
The GX Tire Fitment Guide covers tire sizes for these wheels in more detail, including how much trimming a 285/70R17 needs.
The GX470 OEM 17 question, answered
Yes, stock GX470 17-inch wheels fit the GX460 and clear the front calipers. Owners have done it and driven on them daily with 265/70R17 tires. The GX470 wheel is 17×7.5 with a +25 mm offset and about 5-3/16 inches of backspacing.[4] Because the offset matches the GX460’s stock wheel closely, the tires sit in roughly the factory position, which keeps rubbing to a minimum. This is the cheapest path to 17s: used GX470 takeoffs are common and cheap.
One caution. GX470 wheels are now 15 to 20 years old. Check for bends, cracks, and corroded bead seats before you mount new tires on them. An old wheel that will not hold air is not a bargain.
The TRD Pro 17 question, answered
Yes, the 4Runner TRD Pro 17-inch wheel (17×7, +4 mm offset, part number PTR56-89210-F2) bolts onto a GX460 with no spacers and clears the brakes.[5] Owners run them with 265/70R17 tires on stock suspension. You will need the matching TRD lug nuts; the stock Lexus lug nuts do not seat correctly in the TRD wheel’s lug holes.
Backspacing and offset math

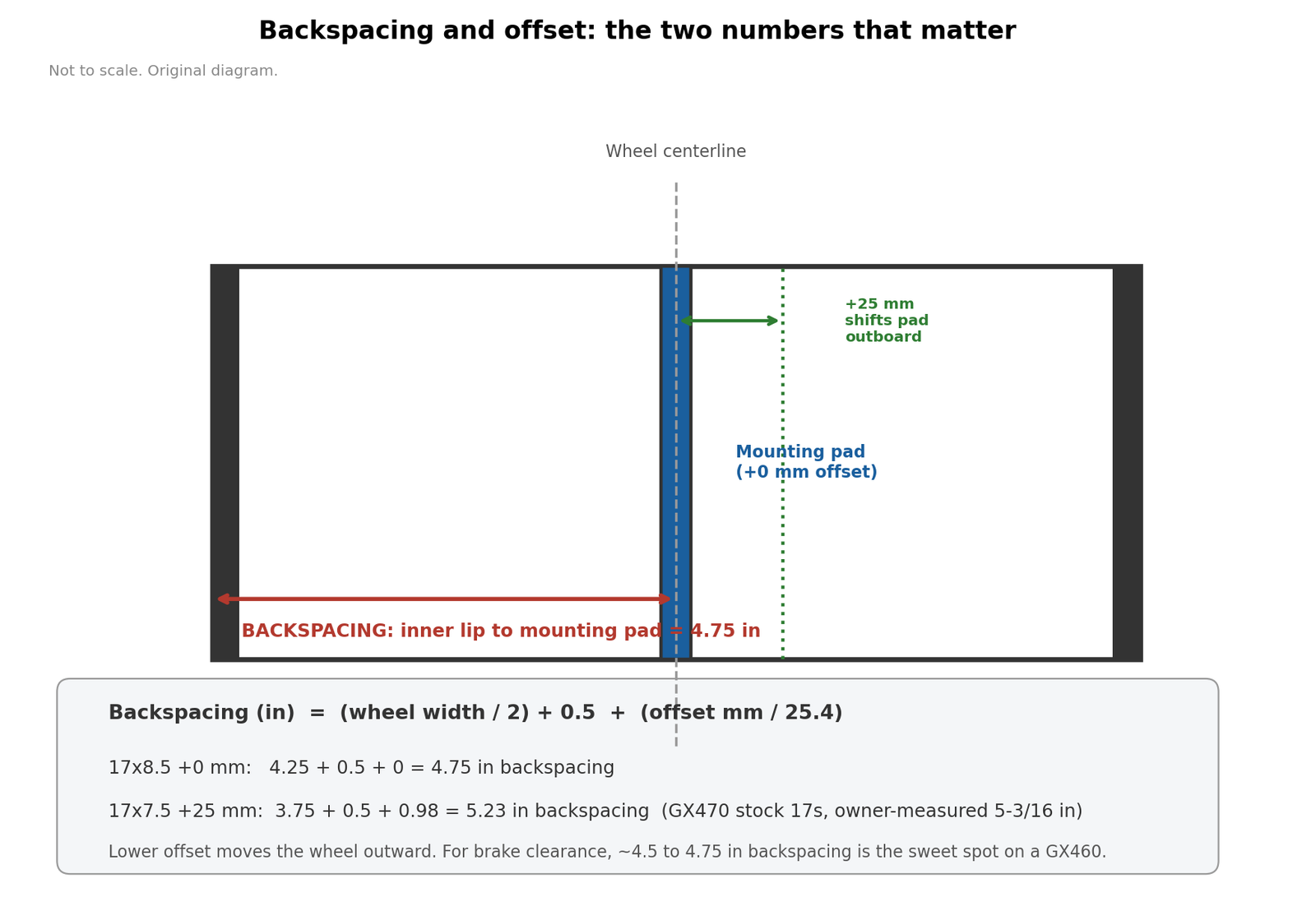

Offset is the distance from the wheel’s centerline to its mounting pad, in millimeters. Positive offset pushes the pad outward (toward the face of the wheel). Backspacing is the distance from the wheel’s inner lip to the mounting pad, in inches. For brake clearance, backspacing is the number that matters most, because it sets how far the caliper sits inside the wheel barrel.
Formula: backspacing = (wheel width / 2) + 0.5 + (offset / 25.4)
| Wheel | Math | Backspacing |
|---|---|---|
| 17×8.5, 0 mm | 4.25 + 0.5 + 0 | 4.75 in |
| 17×9, -12 mm | 4.5 + 0.5 – 0.47 | ~4.53 in |
| 17×7, +4 mm | 3.5 + 0.5 + 0.16 | ~4.16 in |
| 17×7.5, +25 mm | 3.75 + 0.5 + 0.98 | ~5.23 in (owner-measured 5-3/16 in) |
The formula gives a theoretical number. Actual wheels vary slightly because width is measured bead to bead while backspacing is measured to the outer lip. On a GX460, backspacing around 4.5 to 4.75 inches is the sweet spot for brake clearance. Go much higher and the wheel tucks in close to the caliper and the upper control arm. Go much lower and the wheel pokes out and the tire starts eating the fender.
Wheels that usually do NOT clear
- 16-inch wheels of any kind. The barrel will not get past the front calipers. This is a hard no.
- Many 17-inch steel wheels. An owner tried Vision and Pro-Comp 17-inch steelies on a 2012 GX460 and every one of them hit the caliper, even though the dealer insisted they would fit. Steel wheel barrels tend to be flatter and thicker where the caliper needs room. Some steel wheels clear, but the hit rate is bad enough that you should never buy a set without test-fitting one first.
- High-offset cast wheels not designed for trucks. Replica and street-style 17s with +35 to +45 mm offsets tuck the barrel right into the caliper. They were designed around small car brakes.
- Any wheel with clip-on balance weights on the inner lip. Even a wheel that clears by a few millimeters will rub if the tire shop hammers clip-on weights onto the barrel where the caliper sweeps. Ask for stick-on weights placed away from the caliper sweep, or check clearance after balancing.
Parts and tools
| Part or tool | Notes |
|---|---|
| GX470 OEM 17-inch wheels (used set of 4) | Used set on eBay |
| 4Runner TRD Pro 17-inch wheel | New OEM wheel on eBay |
| Test wheel (one only) | Buy or borrow a single wheel before committing to a set |
| Cardboard, scissors, marker | For the caliper template in the test-fit below |
| Floor jack and two jack stands | Amazon Basics 3 ton jack stands, sold as a pair. Never work under a truck held up by the jack alone |
| Torque wrench | EPAuto 1/2 in drive torque wrench. Lugs get torqued, not guessed |
| 21 mm deep socket | GX lug nuts |
| Hub-centric rings | If the wheel’s center bore is larger than 106.1 mm[6] |
| Correct lug nuts | Conical acorn nuts for most aftermarket wheels, for example MIKKUPPA 12×1.5 conical lug nuts; TRD Pro wheels need the TRD lug nuts[5]; GX470 OEM wheels reuse your stock mag-seat nuts |
| Stick-on wheel weights | CKAuto adhesive wheel weights. Clip-on weights on the inner barrel can hit the caliper |
| TPMS sensors or sensor service kit | Move your GX460’s sensors over, or fit new ones like these A-Premium 315MHz sensors (2010-2017 trucks) and have them registered after mounting |
How to test-fit one wheel BEFORE buying tires
Do this with a bare wheel, no tire mounted. A tire shop will usually let you test-fit one wheel if you are buying the set from them. For used wheels, ask the seller to meet you at the truck.
- Park on flat ground, chock the rear wheels, and loosen the front lug nuts slightly.
- Jack up one front corner and put it on a jack stand. Remove the front wheel. The front is the tight one; the rear calipers are smaller.
- Bolt the bare 17-inch test wheel on with two or three lug nuts, snugged by hand.
- Spin the wheel slowly by hand. Watch and listen for contact between the caliper and the wheel barrel or the back of the spokes.
- Check clearance with your finger at the tightest point. You want at least 3 mm of daylight between the caliper and the wheel everywhere it sweeps. This is a shadetree rule of thumb, not a factory spec, but it leaves room for the wheel to flex and for a rock to pass through.

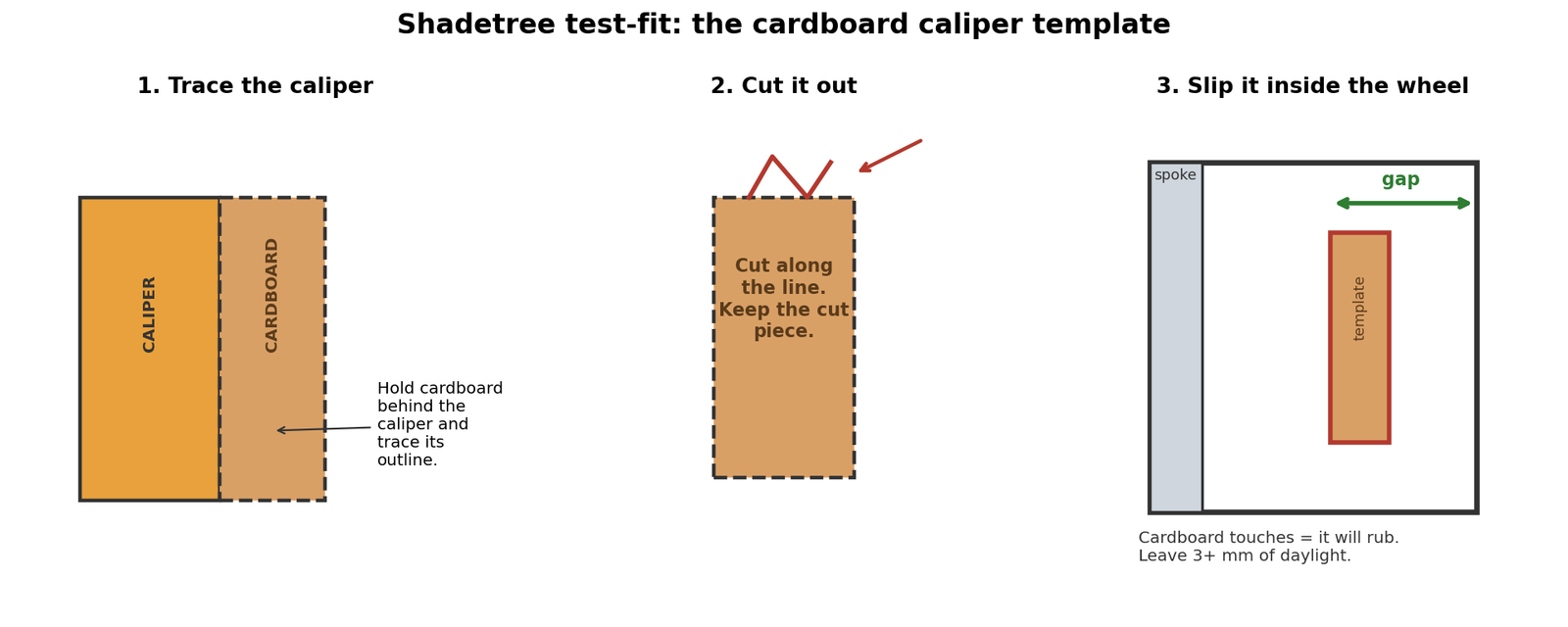

- If you cannot get a finger in there, make the cardboard template. Hold a piece of cardboard behind the caliper, trace the caliper’s outline, and cut it out. Slip the cutout inside the wheel barrel at the caliper’s position. If the cardboard touches the barrel or the spokes, the real caliper will rub.
- Repeat on the other front corner. Calipers and wheels both have manufacturing tolerances, and one side can clear while the other kisses.
- Torque the lug nuts when the stock wheel goes back on: 82 ft lb (112 N·m) for 2010-2015, 76 ft lb (103 N·m) for 2016-2023.[7]
Shadetree notes: a zip tie held against the caliper works as a feeler gauge if your fingers are too big. Chalk the caliper, spin the wheel, and look for chalk transfer on the wheel as a poor man’s contact test. And test-fit with the wheel weights installed if you can, since that is the configuration that will actually be on the truck.
Steel wheels versus alloys on the GX460
Steel wheels are cheap, tough, and easy to hammer back into shape on the trail. That is their whole appeal. The problem on the GX460 is fitment. Steel wheel barrels are typically thicker and flatter than alloy barrels, which eats into the small clearance around the front calipers. The documented failures (Vision, Pro-Comp) are steelies.
Alloys are not automatically fine either, but the popular truck alloys from Method, SCS, and Icon were designed around exactly these brakes, and the owner reports back that up.
Practical advice: if your budget says steel, test-fit one wheel first using the method above, and buy from somewhere with a return policy. If your budget stretches to a used set of GX470 OEM 17s or TRD Pro takeoffs, that is the path of least resistance. They are factory wheels, they clear, and they hold their value when you sell them.
GX470 and GX550 notes
- GX470 (2003-2009): 17s are a non-issue. The stock wheels are 17s, the calipers are less bulky, and the 120-series aftermarket is enormous. None of the GX460 clearance warnings in this guide apply.
- GX550 (2024+): bigger brakes again: 354 mm front rotors with opposed 4-piston calipers. No 17-inch wheel clears them, and the smallest factory wheel is 18. Do not apply GX460 fitment data to a GX550.[8]
After the test fit: mounting notes
- Lug nuts matter. Aftermarket wheels almost always need conical-seat lug nuts, while the stock Lexus wheels use a flat mag-style seat with a washer. Using the wrong seat will not tighten correctly and can loosen. Match the nut to the wheel, not to the truck.
- Torque the lugs. 82 ft lb (112 N·m) on 2010-2015, 76 ft lb (103 N·m) on 2016-2023.[7] Re-torque after 50 to 100 miles.
- TPMS. Either move your GX460’s sensors into the new wheels or buy new sensors and have them registered to the truck. A tire shop with a scan tool does this in minutes.
- The spare. If you switch to 17s with bigger tires, the stock 18-inch spare becomes a diameter mismatch. A mismatched spare is fine to limp home on, but it is not a fifth wheel. Budget for a matching spare if you go off-road.
- Tire pressure. Bigger sidewalls run different pressures. See the guide on what PSI to run in upsized tires on the GX470, GX460, and GX550: https://thetruckgarage.com/what-psi-should-you-run-in-upsized-tires-gx470-gx460-gx550/
FAQ
Will 17-inch wheels fit my GX460? Many do, but not all. The GX460’s front brakes (338 mm rotors with bulky fixed 4-piston calipers) block some 17s, especially steel wheels and high-offset cast wheels. GX470 OEM 17s, 4Runner TRD Pro 17s, and popular truck alloys like the Method MR701, SCS Ray10, and Icon Vector 6 are confirmed to clear. Test-fit one bare wheel before buying tires.
Do GX470 17-inch wheels fit a GX460? Yes. Stock GX470 17×7.5 wheels with +25 mm offset clear the GX460’s front calipers, and owners run them daily with 265/70R17 tires. They are one of the cheapest ways to get into 17s.
Do 4Runner TRD Pro wheels fit a GX460? Yes. The 17×7 TRD Pro wheel with +4 mm offset bolts on with no spacers and clears the brakes. You need the matching TRD lug nuts.
Will 16-inch wheels fit a GX460? No. The front calipers are too large. 17 inches is the practical minimum wheel diameter.
Can I use wheel spacers to make a 17 clear the caliper? Spacers move the wheel outward, which helps lateral clearance at the spokes, but they do nothing for radial clearance between the caliper top and the barrel. If the barrel hits the top of the caliper, a spacer will not save it. If the spokes kiss the caliper face, a quality hub-centric spacer can help, but test-fit first.
Do steel 17s fit a GX460? Some might, but many do not. Documented cases of 17-inch steel wheels hitting the GX460’s front calipers exist, so treat every steel wheel as guilty until a test fit proves otherwise.
What backspacing should I look for? Around 4.5 to 4.75 inches of backspacing is the sweet spot for brake clearance on a GX460. That is 0 mm offset on a 17×8.5 wheel. Higher backspacing tucks the wheel into the caliper and the upper control arm; lower backspacing pushes the tire into the fender.
What about the GX550? The GX550 runs 354 mm front rotors with opposed 4-piston calipers, and no 17-inch wheel clears them. Its smallest factory wheel is 18 inches. Do not use this guide’s GX460 numbers on a GX550.[8]
Footnotes
Sources
- Truck Garage GX460 brake guide (rotor diameters and lug torque verified against the factory manuals)
- O’Reilly Auto Parts: Brake Rotors, 2018 Lexus GX460: https://www.oreillyauto.com/shop/b/brakes/brake-drums—rotors/brake-rotors/d133f11235f8/v/a/145203/automotive-suv-2018-lexus-gx460
- PartsGeek: 2012 Lexus GX460 brake calipers: https://www.partsgeek.com/catalog/2012/lexus/gx460/brake/brake_caliper.html
- IH8MUD: T4R or GX470 Wheels on GX460: https://forum.ih8mud.com/threads/t4r-or-gx470-wheels-on-gx460.1297680/
- IH8MUD: Do TRD OR Wheels fit on stock gx460?: https://forum.ih8mud.com/threads/do-trd-or-wheels-fit-on-stock-gx460.1235512/page-5
- IH8MUD: Getting steel wheels on a 2012 GX 460 Premium: https://forum.ih8mud.com/threads/getting-steel-wheels-on-a-2012-gx-460-premium.1266539/
- IH8MUD: 16″ Wheels: https://forum.ih8mud.com/threads/16-wheels.1315429/
- IH8MUD: New GX 460 Owner: https://forum.ih8mud.com/threads/new-gx-460-owner.1295029/page-2
- TacomaWorld: My GX Build Thread v1.0: https://www.TacomaWorld.com/threads/my-gx-build-thread-v1-0.848031/
- Custom Offsets: 2022 Lexus GX460 with Icon Alloys Vector 6 17×8.5: https://www.customwheeloffset.com/wheel-offset-gallery/2253776/2022-lexus-gx460-icon-alloys-vector-6-stock-falken-wildpeak-at3w
- Lexus Canada: 2024 GX Specifications (GX550 front brakes 354 mm, fixed 4-piston calipers, 18-inch minimum factory wheel): https://toyotacanada.scene7.com/is/content/toyotacanada/2024%20GX%20Spec%20Sheet%20TCIpdf-1?bfc=off&$?cdh=attachment
- Truck Garage: What PSI should you run in upsized tires (GX470, GX460, GX550): https://thetruckgarage.com/what-psi-should-you-run-in-upsized-tires-gx470-gx460-gx550/
Footnotes
[1] GX460 front brake rotors are 13.303 in (338 mm) vented discs; rears are 12.283 in (312 mm). O’Reilly Auto Parts, 2018 Lexus GX460 brake rotor listing.
[2] GX460 front calipers are fixed 4-piston units with 48 mm pistons. PartsGeek, 2012 Lexus GX460 brake caliper listing; Detroit Axle front caliper listing for 2010-2015 GX460/4Runner.
[3] Front rotor diameter is 338 mm on both the GX470 (28 mm thick) and the GX460 (32 mm thick), verified against the factory manuals in the Truck Garage GX460 brake guide.
[4] GX470 stock wheels are 17×7.5 with +25 mm offset and owner-measured 5-3/16 in backspacing. IH8MUD, “GX-470 Wheels on 80’s Series Fitment” and “T4R or GX470 Wheels on GX460.”
[5] TRD Pro wheels are 17×7 with +4 mm offset, part number PTR56-89210-F2, and bolt onto a GX460 with no spacers. Black TRD lug nuts are part number PT076-60200-02. IH8MUD, “Do TRD OR Wheels fit on stock gx460?”
[6] GX wheel hub bore is 106.1 mm. Wheels with a larger bore need hub-centric rings to center on the hub. Circuit Offroad 17×8.5 wheel listing (hub bore 106.1 mm, fits GX470/GX460).
[7] Lug nut torque: 82 ft lb (112 N·m) for 2010-2015 GX460; 76 ft lb (103 N·m) for 2016-2023 GX460. The 2010-2021 values are verified against the factory manuals in the Truck Garage GX460 brake guide; the 2022-2023 value matches the owner’s manuals.
[8] GX550 front brakes: 354 mm rotors with opposed 4-piston calipers; smallest factory wheel is 18 in. Lexus USA, 2024 Lexus GX550 product specifications.
