KDSS Explained: What It Is, Whether You Want It, and How to Check It

Written by

thetruckgaragehq

in

A practical guide to the Kinetic Dynamic Suspension System on the Lexus GX: GX470 (2003 through 2009) and GX460 (2010 through 2023). How it works, how to spot it on a truck, the GX lean, maintenance, lift considerations, and what to check before you buy. Includes a short verified note on GX550 E-KDSS trim availability.

Who This Guide Is For

This guide is for anyone shopping for a GX or living with one. If you are wondering what KDSS is, whether it is a selling point or a problem, how to tell if a truck has it, or why your truck leans to one side, this is the guide. It answers the questions that come up constantly in buyer threads: what it does, do you want it, and how do you check it.

What KDSS Is

KDSS stands for Kinetic Dynamic Suspension System. It is a hydraulic system that connects the front and rear stabilizer bars and changes how stiff they act depending on what the truck is doing.

A normal stabilizer bar (sway bar) is a compromise. A stiff bar keeps the body flat in turns but fights wheel travel off road. A soft bar articulates well but lets the body roll. KDSS gets around the compromise with hydraulics instead of a fixed bar rate.

Each stabilizer bar gets a hydraulic cylinder. The front cylinder’s upper chamber is piped to the rear cylinder’s upper chamber, and the front lower chamber is piped to the rear lower chamber. The whole circuit is filled with suspension fluid at about 3 MPa (435 psi). Between the cylinders sits the accumulator housing assembly: a gas charged accumulator, upper and lower pressure sensors, an accumulator solenoid valve, manual shutter valves, and a bleeder plug.

A dedicated stabilizer control ECU runs the show. It watches the front wheel speed sensors, the steering angle sensor, and the lateral acceleration sensor, and it opens or closes the accumulator solenoid valves in response.

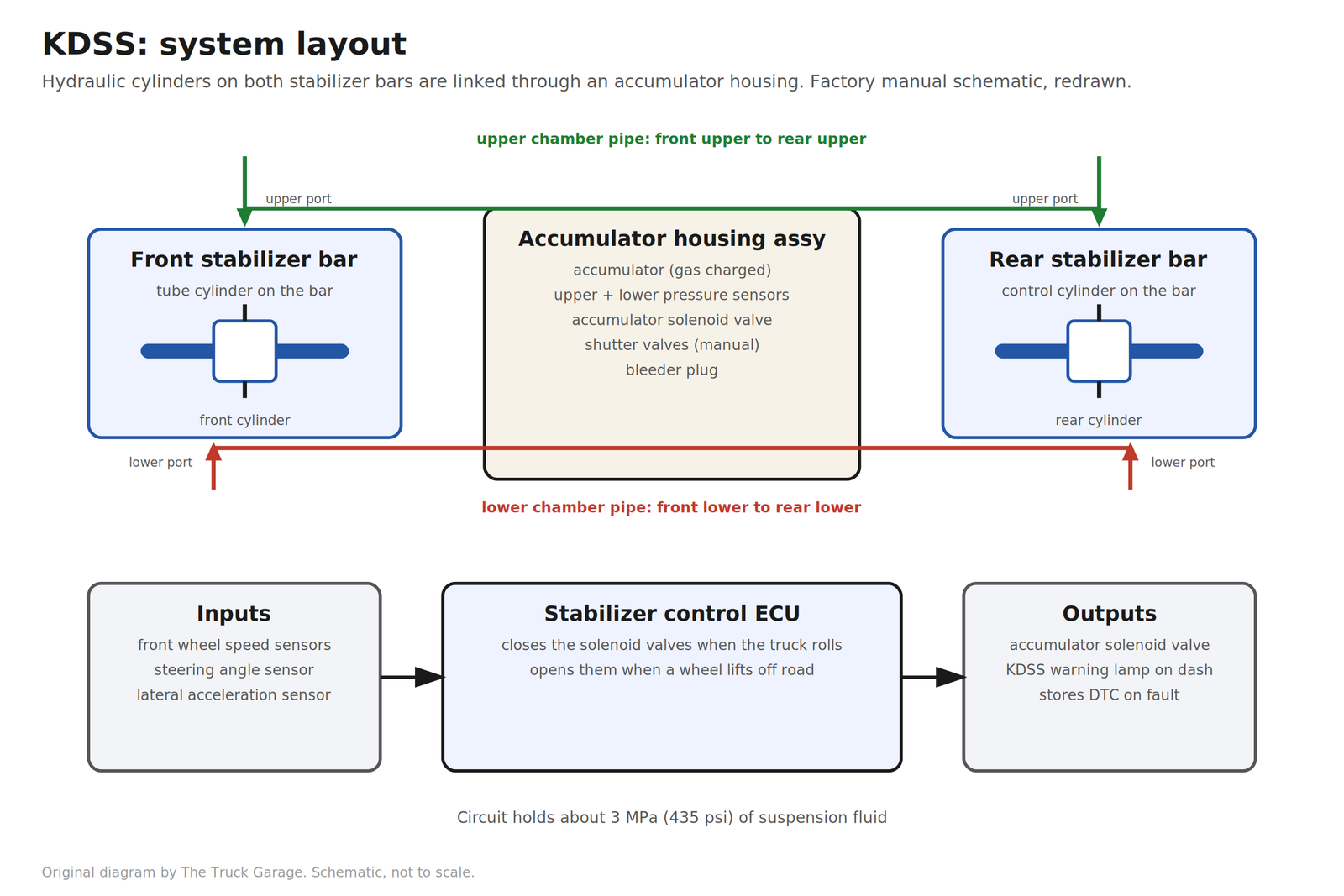

Hydraulic cylinders on the front and rear stabilizer bars linked through the accumulator housing assembly, upper and lower chamber pipes, ECU inputs and outputs.

How It Behaves On Road and Off Road

On road, when the truck rolls in a turn, the ECU closes the solenoid valves. That cuts fluid flow to the accumulator, so the front and rear hydraulic pressures equalize and the pistons cannot stroke. With the pistons locked, the stabilizer bars twist like normal bars and body roll is resisted. The truck corners flatter than its height suggests.

Off road, when one wheel rises over an obstacle, the ECU opens the valves. Fluid flows to the accumulator, the front and rear pistons stroke in opposite directions, and the stabilizer bars barely twist at all. The wheel travels freely and the tire stays planted. You get the articulation of a disconnected sway bar with nothing to unbolt.

That is the whole trick. Stiff bars when you want them, free bars when you do not, with no driver input.

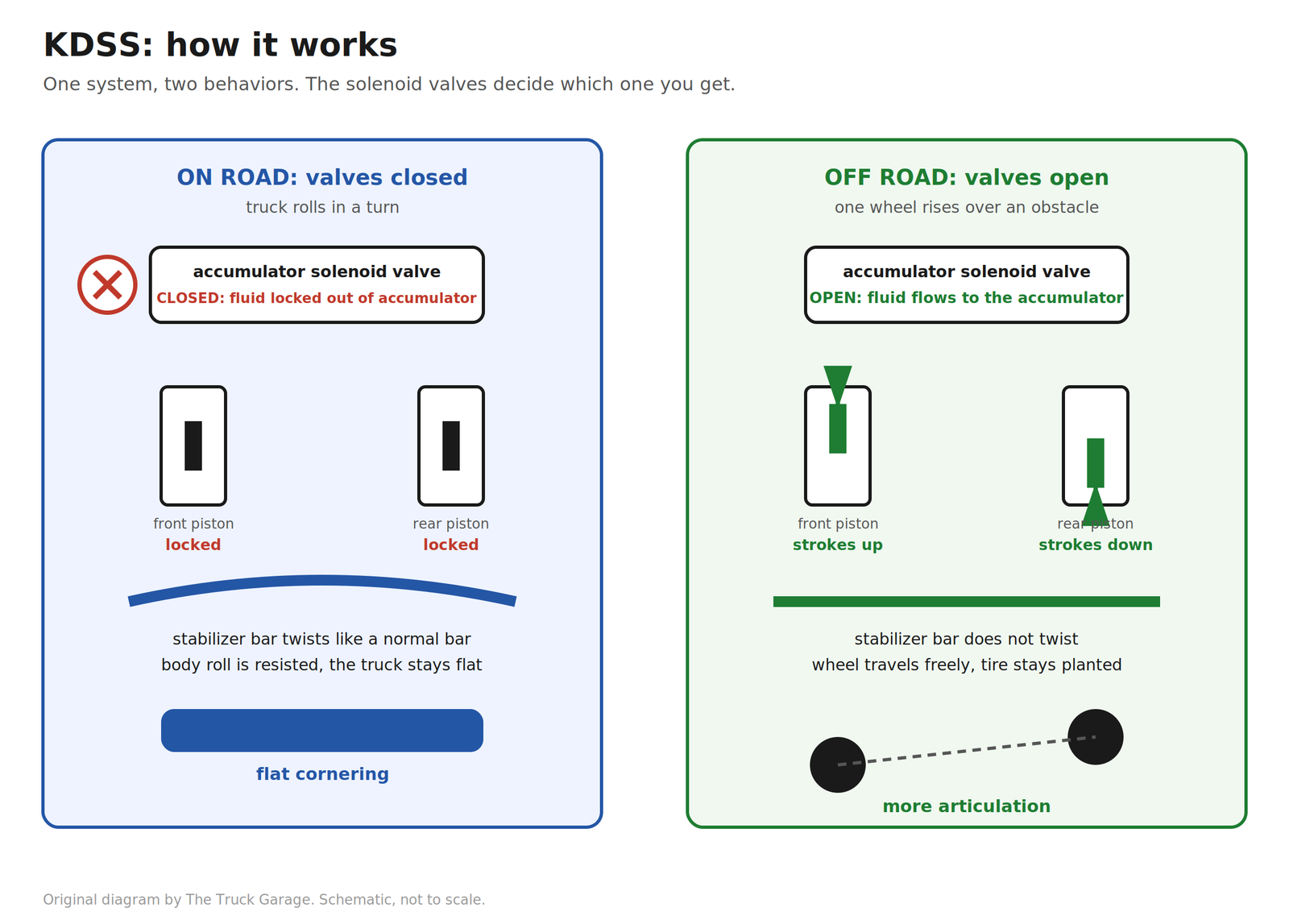

On road: solenoid valves closed, pistons locked, stabilizer bars twist, flat cornering. Off road: valves open, pistons stroke in opposite directions, more articulation.

Do You Want It

For a daily driver that sees dirt roads, forest roads, and moderate trails, yes. KDSS is one of the best stock features on these trucks. The on road manners are noticeably better than a non KDSS truck, and off road you get real articulation without crawling under the truck to disconnect anything. Owners consistently report the handling improvement is the first thing they notice, especially on freeway ramps and sharp turns.

For a dedicated build with a big lift, long travel suspension, or high speed desert running, KDSS is a complication. It does not play well with extended travel coilovers because the system was designed around stock geometry. Some skid plates and sliders do not fit around the hardware. And it was never offered on the TRD Pro 4Runner, which tells you where Toyota draws the line for high speed off road use.

As a buyer, do not walk away from an otherwise clean truck because it has KDSS, and do not pay a big premium just to get it. On the GX470 it usually comes bundled with the Sport package anyway. Treat it as a genuine plus for a stock or mildly built truck and as a known complication for a hardcore build.

Which Trucks Have It

GX470 (2003 through 2009). KDSS arrived as a late 2004 model year option. From 2005 on, every Sport package truck has KDSS. There was no Sport model for 2004, but KDSS was available as a separate option on non Sport trucks, and a few of those exist. KDSS was never standard across the GX470 line.

GX460 (2010 through 2023). KDSS is standard on every trim, all years. You do not have to hunt for it or decode an option sheet. If it is a GX460, it has KDSS.

GX550 (2024 and newer). The GX550 uses E-KDSS, an electronic version of the system. It is standard only on the Overtrail and Overtrail+ trims. Premium, Premium+, Luxury, and Luxury+ do not get it and cannot be optioned with it, per the official Lexus feature tables for 2024 through 2026. E-KDSS locks and unlocks the front and rear stabilizer bars independently based on driving conditions, speed, steering input, and Multi-Terrain Select settings. This guide covers the hydraulic KDSS on the GX470 and GX460 in depth. E-KDSS service details are not in the factory manuals on file.

One related note: the 2005 and newer GX470 Sport also came with X-REAS cross linked shocks. KDSS and X-REAS are separate systems that happen to share the Sport package. This guide covers KDSS only.

How to Tell If a Truck Has KDSS

Sellers guess. Ads get it wrong in both directions. The truck has no poker face. These four checks do not lie.

1. Look at the stabilizer bars. Crawl under the front and check the stabilizer bar for a hydraulic cylinder with fittings top and bottom. Then check the rear bar. KDSS trucks have cylinders on both. A plain bar is just a bar. No cylinders, no fittings, no hydraulics, no party. KDSS bars are also thicker. A period writeup put the GX470 KDSS setup at 47 mm front and 33 mm rear, against a more typical 30 mm front and 21 mm rear on a non KDSS truck. Bushing maker Nolathane lists a 27.5 mm front mount bushing set as KDSS equipped fitment for the GX470, GX460, and 4Runner.

2. Look along the driver side frame rail. Paired hydraulic lines run fore and aft along the rail, connecting the front cylinder to the accumulator housing to the rear cylinder. While you are there, look at every fitting. Damp is the start of a leak.

3. Find the accumulator housing. Mid truck on the driver side, behind a steel protective cover. The cover bolts off with hand tools. The accumulator housing, pressure sensors, solenoid valve, and shutter valves live under it.

4. Check the dash. Turn the key to ON. The KDSS lamp should light for a few seconds and then go out. If it never lights, the truck does not have KDSS. If it stays on, the ECU has stored a fault and you need to read the codes before anything else.

Trim clues can help but they are not proof. A 2005 or newer GX470 Sport always has KDSS. Dark gray steering wheel, dark gray roof rack, and smoked lights point to Sport, but verify underneath. On a GX460 you can skip the detective work: they all have it.

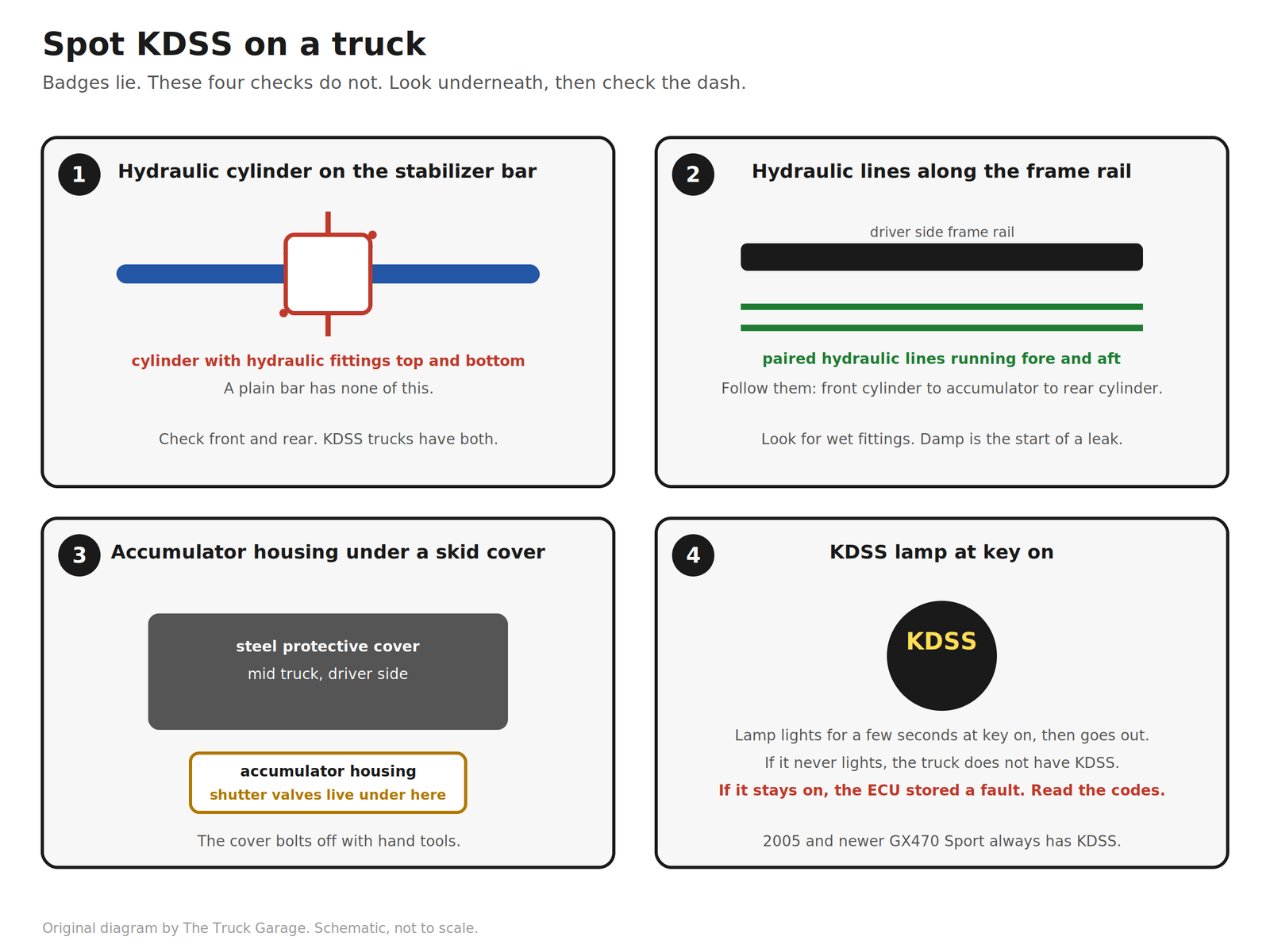

Spot KDSS on a truck. Four checks: hydraulic cylinder on the stabilizer bar, hydraulic lines along the driver side frame rail, accumulator housing under a skid cover, KDSS dash lamp at key on.

The GX Lean

The GX lean is the truck sitting lower on one side than the other, usually the driver side. It is the most talked about KDSS quirk, and it has a real mechanical explanation.

Each KDSS cylinder has an upper and a lower chamber, but the upper chamber has a larger effective piston area than the lower one because the piston shaft takes up space on the lower side. When the shutter valves equalize pressure between the chambers, the larger upper area wins and pushes down harder on one side. Small imbalances in the system show up as a visible lean. Age makes it worse: springs sag, pressures drift, and the truck settles crooked.

Before you blame KDSS, rule out the simple stuff. A sagged or mismatched coil spring causes the same symptom, and KDSS cannot fix bad springs. Measure first, on flat concrete, after bouncing each corner to settle the suspension. Measure ground to fender lip on both sides, or center of wheel to fender lip. The factory KDSS inspection calls for the left to right height difference to be 20 mm (0.79 in.) or less, measured from the ground to the top of the bumper. Past that, it is worth chasing. Less than that is cosmetic, though plenty of owners chase smaller leans for looks.

The rebalance procedure, from the factory inspection text and confirmed by owner practice:

  1. Park on level ground. Pull the skid cover off the accumulator housing.
  2. Open BOTH shutter valves 1.5 to 2.5 turns. Mark them with a paint pen first so you can count. Never remove the valves.
  3. Bounce the truck firmly and let it sit so the suspension settles. Some owners drive the low side onto a 2×4 or 4×4 block to preload the high side before closing the valves.
  4. Re measure both sides.
  5. Close BOTH valves fully. Torque is 6.6 ft lb (9.0 N m, 80 in lbf). Snug, not gorilla tight.
  6. Reinstall the cover and road test.

Never start or drive the truck with the shutter valves open. If the valves are seized from corrosion, soak them in penetrating oil and be patient. If one will not move, stop and let a shop handle it. A snapped valve turns a free procedure into an expensive housing replacement.

If the lean survives the rebalance, the springs are the next suspect. Ten millimeter rear spacers on the low side have corrected some owner trucks. They do not always work, and the reason why is in the lift section below.

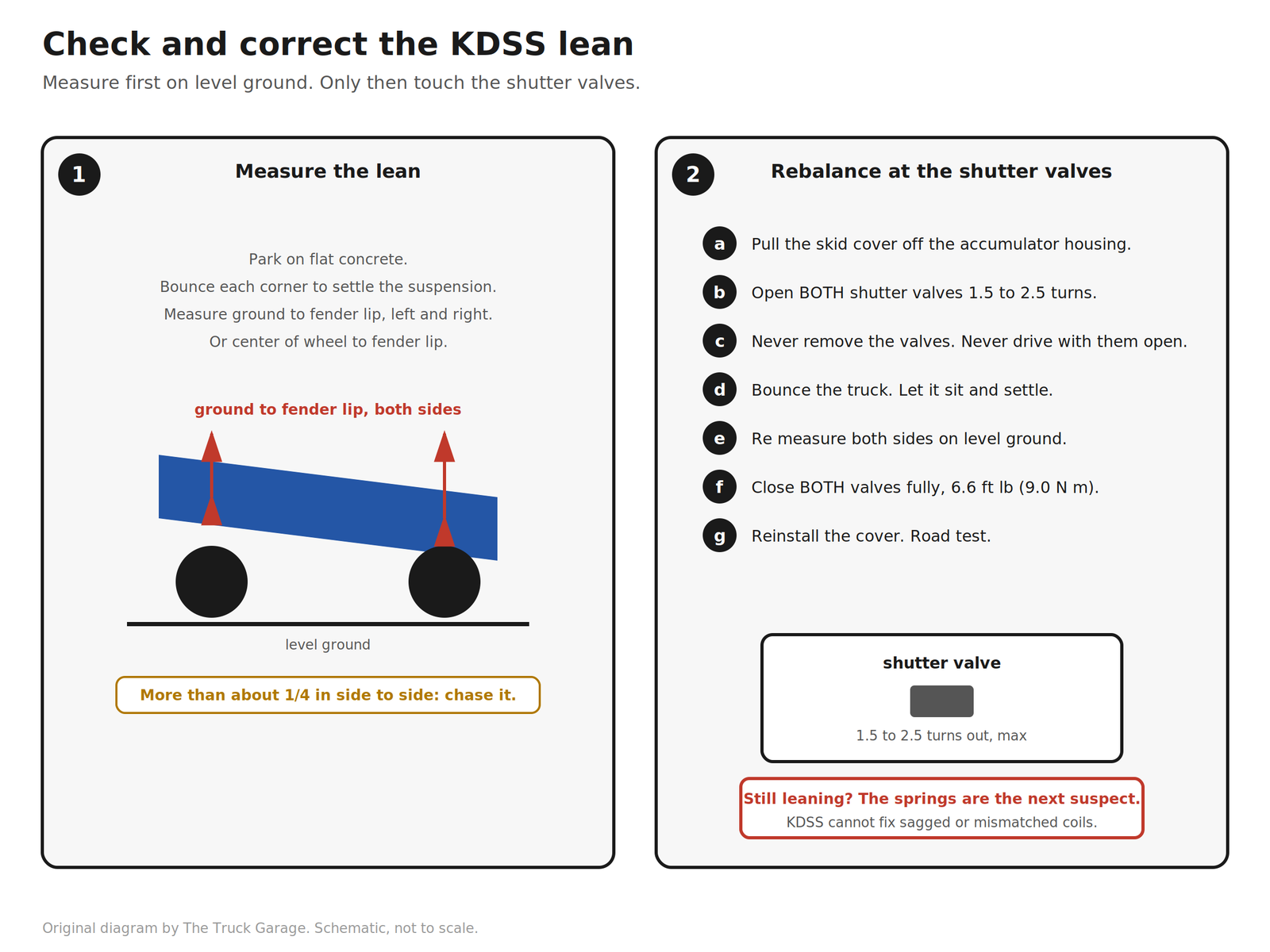

Check and correct the KDSS lean. Measure ground to fender lip on both sides on level ground, then the shutter valve rebalance procedure.

Maintenance and Common Failures

KDSS is mostly maintenance free, which is why failures surprise people. There is no service interval for the fluid in normal use. What actually goes wrong:

Leaks. The cylinders, the line fittings along the frame rail, and the accumulator housing can all weep. The circuit runs at about 3 MPa (435 psi), so a small leak matters. Wipe the fittings clean, drive the truck, and recheck. Fresh dampness after a drive is an active leak.

Seized shutter valves. The valves live under a skid cover in the splash zone. On rust belt trucks they corrode in place. Exercise them with penetrating oil before you need them, not during a lift install on a deadline.

KDSS warning lamp. If the lamp stays on after key on, the ECU has stored a fault. Common causes are pressure sensor faults and low system pressure from a leak. A scan tool that talks to the chassis systems will pull the codes.

Reading KDSS codes without a scanner. You do not need a scan tool. The factory manual documents a check wire method for the GX470, and the same Toyota check wire method is documented on the GX460. Under the driver side dash, find the DLC3 connector (the OBD-II port). With the ignition off, jumper terminal 13 (TC) to terminal 4 (CG) with a piece of wire. Toyota calls the official jumper SST 09843-18040. A paperclip works, but do not bridge any other terminals. Turn the ignition to ON with the engine off and watch the KDSS lamp. A steady fast blink, 0.25 seconds on and 0.25 off, is the normal code: no faults stored. Trouble codes blink out as two digit numbers. The first digit blinks at 0.5 second intervals, then a 1.5 second pause, then the second digit, then a 2.5 second pause before the next code, and the whole cycle repeats after about 4 seconds (4.5 on the GX470). Count carefully and write the codes down. To clear: turn the ignition off, keep the jumper in place, turn the ignition back to ON, and press and release the brake pedal 8 or more times within 5 seconds. The lamp should switch to the fast normal blink. Turn the ignition off and remove the jumper. If the fault is still present, the code comes right back. Disconnecting the battery does not clear KDSS codes.

KDSS fluid. The factory fluid is Toyota Suspension Fluid AHC, part number 08886-01805, sold in 2.5 liter tins. It is a low viscosity synthetic hydraulic fluid, not ATF. Never put ATF, power steering fluid, or brake fluid in the KDSS circuit. The wrong fluid destroys the seals. The circuit runs at about 3 MPa (435 psi). Bleeding and pressurizing to the factory spec takes a high pressure hand pump, so fluid service is specialist work for most owners. The practical takeaway: never top up with whatever is on the shelf.

Driveshaft clunk (GX470). A clunk or thump when stopping or pulling away from a stop is a known GX470 issue, and it is often the rear driveshaft slip yoke binding for lack of grease. Pumping grease into the slip yoke zerk fitting quiets it, but the fix is temporary and the clunk usually comes back. Lexus issued TSB L-SB-0116-08 (September 17, 2008) covering 2003 through 2008 GX470 models, and released a revised rear propeller shaft, part 37110-60A40, as the permanent fix. The production change took effect at VIN JTJBT20X*80170241. Trucks built before that VIN left the factory with the earlier shaft. Full diagnosis, slip yoke greasing versus the revised shaft, is a future guide.

Cylinder and accumulator replacement. When a cylinder or the accumulator housing fails, the parts are expensive and the system must be bled and repressurized. This is dealer or specialist work. Get a quote before you buy a truck with an active KDSS fault.

Parts and Tools

For inspection and the lean rebalance you need little:

  • Tape measure for the lean check
  • 12 mm socket for the skid cover bolts
  • 10 mm wrench for the shutter valves
  • Paint pen to mark the valves before loosening
  • Torque wrench that reads in inch pounds, for the 80 in lbf shutter valve spec
  • Penetrating oil for corroded valves
  • A 2×4 or 4×4 block, a few feet long, for the preload trick
  • A short jumper wire or paperclip for reading KDSS codes at the DLC3

Shadetree alternative for the torque wrench: 80 inch pounds is light. If you do not have an inch pound wrench, snug the valves firmly by hand with a short wrench and stop. Overtightening a shutter valve is how they get damaged. A proper torque wrench is still the right tool and worth owning.

Lifts and KDSS

KDSS complicates lifts. That is the honest version.

Any time you remove suspension components, the shutter valves must be opened first so the stabilizer bars can move freely. Open both 1.5 to 2.5 turns with the truck on the ground or on a hoist with the wheels hanging, do the work, set the truck back on level ground at its finished ride height, then close both valves fully. Many lift installs skip this and get away with it, but skipping it is also how trucks end up with a lean that was not there before.

Lifts change the geometry KDSS was designed around. A mild lift with KDSS compatible components works fine and is extremely common. Extended travel coilovers are where the trouble starts: the system cannot use travel it was not designed for, and owners report the lean gets harder to correct past about two inches of lift.

Two specific warnings from owner experience. First, the bolts that hold the front KDSS cylinder to the lower control arm strip easily. They are fine thread and often corroded. Put a pair of vice grips on the bar for control, break them loose gently, and have a helper for reassembly. Second, front KDSS spacers marketed as lean cures have a poor track record: owners report they did not fix the lean and in some cases over extended the piston into the skid plate. Fix the lean with the valves and the springs, not with spacers.

About those rear spacers from the lean section. Several companies make them in sizes from 10 mm trim packers (Old Man Emu, SuperPro) to 15 mm (Dobinsons, sold by Apache Offroad) to 30 mm spring pads (Whiteline). Toyota also lists a rear spring spacer, part 48373-60010, that owners have used. They correct the height at that corner whatever the cause, so they can level a truck with a sagged spring and the lean stays gone. But a spacer does not fix a hydraulic imbalance. When the lean comes from pressure drift in the KDSS circuit, the spacer hides the symptom while the underlying imbalance remains, and the lean can come back as the system drifts further. That is why the rebalance comes first. Recheck the lean a few months after fitting spacers. If it returns, the spring is done and needs replacement, not a taller spacer.

Several companies make KDSS geometry correction, relocation, and sway bar drop kits for lifted trucks: Dr. KDSS (bolt on track bar correction kit and extended sway bar links), Treaty Oak Offroad (front and rear KDSS spacer kits), eimkeith (Panhard correction kit), Iron Rigs 4×4 (KDSS compatible adjustable panhard bar), and Total Chaos Fabrication (KDSS compatible lower control arms). This guide does not prescribe one kit. Match the kit to your lift height and check owner feedback for your exact year.

Buying Inspection Points

Run these on any KDSS truck before money changes hands:

  1. Key on: KDSS lamp lights then goes out. Stays on means a stored fault. Never lights means no KDSS (GX470) or a dead bulb hiding a fault.
  2. Crawl under: cylinders on both bars, lines along the driver rail, accumulator housing behind its cover. Wet fittings mean leaks.
  3. Measure for lean on flat concrete. Past 20 mm (0.79 in.) side to side is outside the factory inspection tolerance. Budget time for the rebalance or negotiate.
  4. Try the shutter valves. If they are seized solid on a rust belt truck, factor that into the price.
  5. Ask about lift history. If it was lifted, ask whether the valves were opened during the install and whether the lean appeared after.
  6. Drive it. Clunks over bumps near the stabilizer bars, vague handling, or the lamp coming on during the drive are all walk away or discount items. A clunk or thump when stopping or pulling away is often the rear driveshaft slip yoke (GX470), a separate known issue covered in the maintenance section.
  7. Scan it. A chassis capable scan tool will show stored KDSS codes the lamp may not reveal. No scanner? The jumper wire method in the maintenance section reads and clears them.
