You lifted your GX, and now there is a vibration or hum from the front end. Someone in a forum thread tells you to buy a differential drop kit. This guide explains what the kit actually does, what it will not fix, and the diagnostic order that saves you from buying parts you do not need. Written for the GX470 (2003-2009) and GX460 (2010-2023). The same logic applies to the shared-platform 4Runner, Tacoma, and FJ Cruiser where verified.

The short answer

Usually, no. A differential drop kit does not reliably fix front-end vibration. What it does is lower the front of the differential about an inch, which slightly reduces the angle the front CV axles run at after a lift. That helps CV boots live longer. It does not cure the vibrations most lifted GX owners actually chase, because those usually come from somewhere else: bad wheel balance, alignment, worn components, or (on part-time 4WD trucks) the front differential needle bearing ^[1][2].

Buy the kit for CV angle and boot longevity on a 2.5 to 3 inch lift. Do not buy it as a vibration fix. Diagnose first, then decide.

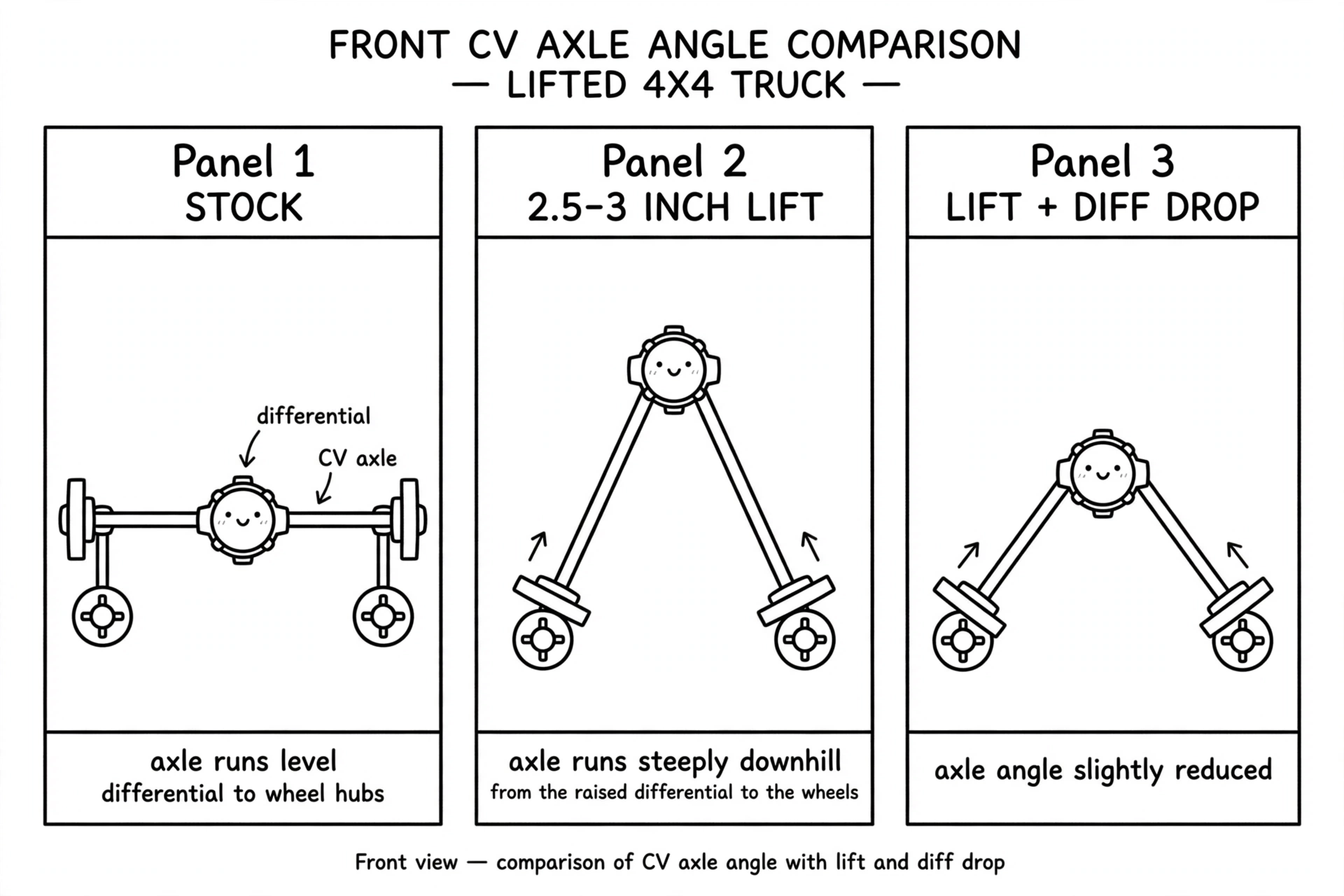

What lifting does to the front CV angles

On an independent front suspension, the front differential is bolted to the frame and the CV axles run from the diff out to the wheel hubs. At stock height the axles run close to level. When you lift the truck 2.5 to 3 inches, the frame and the diff go up with it, but the wheels stay on the ground, so the axles now run downhill from the diff to the hubs at a steeper angle ^[3].

Two things suffer. The inner CV joint runs at a sharper angle, which accelerates wear. And the CV boot, which is a pleated rubber sleeve, now rotates while folded at that sharper angle. One owner put it well: the pleats fold and unfold with every rotation, like bending a wire back and forth until it breaks. That is why torn inner CV boots are the classic lifted-truck failure ^[4].

What a diff drop kit actually is

A diff drop kit is almost embarrassingly simple: two spacers, about an inch thick, plus longer bolts. You unbolt the two front differential mounts from the frame, slip a spacer between each mount and the frame, and reinstall with the longer bolts. Some kits also include spacers for the skid plate, which now sits lower relative to the diff ^[5][6].

The catch: the kit only drops the FRONT of the differential. The rear mount stays bolted up and becomes a pivot, and the CV joints sit close to that pivot. So a 1 inch spacer gives about a third of an inch of real drop at the CVs, roughly 3 to 4 degrees of angle change. Small but real, and it explains why owners report a little help, not a transformation ^[7].

What it fixes, and what it does not

What it fixes:

• It reduces the inner CV joint operating angle slightly on a lifted truck, which is easier on the joints ^[3].
• It straightens the CV boots a little, which slows the fold-and-unfold pleat wear that kills boots on lifted trucks. Several owners describe boot life as the entire point of the kit ^[2][4].

What it does not reliably fix:

• Vibration. One owner installed the kit, did more research, removed it, and reported it never helped any front-end vibration ^[8]. A diff drop does not do much for CV angles and will not make a vibration go away; a faulty bearing stays faulty until it is fixed ^[1].
• Alignment. It does absolutely nothing for alignment. That is caster, camber, and toe, which are set at the control arms and tie rods ^[2].

One more thing before you buy. Dropping the front of the diff rotates the pinion flange down, which changes the front driveshaft joint angle between the transfer case and the diff. On 2.5 inch and bigger lifts, that can occasionally introduce a high-frequency driveline vibration of its own, usually around 50 to 65 mph ^[9]. The kit is usually neutral on vibrations, but it is not a vibration tool.

The ground-clearance tradeoff

You lifted the truck partly for ground clearance. A diff drop gives some of it back, right at the front. The differential hangs about an inch lower than it did, and it becomes the new lowest point up front. The forward diff mount legs are more exposed and more vulnerable to rock strikes ^[9].

For a street-driven or mild-trail truck this barely matters. For a truck that actually crawls rocks, it matters a lot, and it is the main reason some experienced owners skip the kit. A good steel skid plate mitigates the risk, and several owners run the drop with a skid and report no problems ^[9]. But if your build is about maximum clearance, dropping the diff to save the boots is trading one kind of protection for another.

Shadetree note: the kit is cheap, typically $30 to $130 depending on brand, and the install is about an hour ^[2][3][10]. One owner installed it, decided the clearance mattered more, and took it back out ^[8]. Keep the factory bolts in a labeled bag so you can always go back.

When it makes sense, and when to skip it

It makes sense when:

• You are running a 2.5 to 3 inch lift and want to be kinder to the CV joints and boots. This is the kit’s actual job ^[3].
• You have already torn an inner boot on the lift and want to slow the repeat. It will not prevent it, but the angle reduction helps ^[4].
• The truck is a daily driver or mild trail rig where one inch of front clearance is not the difference between clearing an obstacle and not.

Skip it when:

• You are chasing a vibration. Diagnose the vibration first (next section). The kit is not the fix ^[1][8].
• You wheel hard and every inch of clearance counts. The dropped diff is a new rock magnet ^[9].
• The truck is at stock height. There is nothing to correct.
• You are at 2 inches or less of lift and your boots look fine. The angle change is small and the benefit is marginal.

Symptom quick check

Symptom	Likely cause	Will a diff drop fix it?	What actually fixes it
Vibration 50-65 mph after new tires or a lift	Wheel balance	No	Road-force balance; rotate tires front to back
Truck feels busy or wanders after a lift	Alignment (toe)	No	Alignment
Rumble 30-45 mph that vanishes in 4WD (part-time 4WD trucks)	Front diff needle bearing	No	ECGS bushing
Grease slung near the inner CV, clicking on turns	Torn boot, dry joint	No, it only helps prevent the next one	Reboot or replace the axle
Inner boots keep tearing on a 2.5-3 in lift	Steep CV angle	Yes, this is its actual job	Diff drop kit

The shadetree diagnostic order

Do these in order before you buy anything. Each step is cheap or free, and each one rules out a more common cause than CV angle.

1. Rule out wheel balance. Rotate the tires front to back and drive it. If the vibration moves with the tires, it is a tire or balance problem, not the diff. New wheels, new tires, and lifts all disturb balance, and a lost wheel weight mimics a driveline vibration convincingly. This is the single most common cause of post-lift vibration complaints.

2. Check the alignment and the simple stuff. Wrong toe after a lift makes the truck feel busy and can read as a vibration. While it is on the lift, check for a torn CV boot slinging grease (that is a real CV problem, and a diff drop will not fix a joint that is already dry and clicking) and check the wheel bearings for play.

3. The 4WD test (part-time 4WD trucks). On part-time 4WD trucks like the Tacoma, part-time 4Runner, and FJ Cruiser, there is a classic failure with a classic test. A worn driver-side needle bearing in the front differential causes a rumble, growl, or cyclical vibration, usually around 30 to 45 mph, that disappears the instant you shift from 2WD into 4WD and comes back when you shift out ^[11]. If your truck does that, the diff drop will not fix it. The established fix is replacing the needle bearing with a solid PTFE bushing, the best known being the East Coast Gear Supply clamshell bushing, which owners report cures the vibration completely ^[12][13].

A GX caveat. The GX470 and GX460 are full-time 4WD with a center differential, so there is no 2WD/4WD switch to run this test with. Stock GX front diffs do not come with that needle bearing from the factory; they use tapered roller and ball bearings on the carrier, and the bushing maker’s own fitment excludes full-time 4WD. Some GX owners still report the ECGS fix, usually because a Tacoma or 4Runner carrier was swapped in during a regear or locker install, or because inner CV play got misdiagnosed as bearing slop. Do not order the bushing for a stock GX on the strength of Tacoma threads alone. If your GX has a front-end rumble, work the rest of this list and talk to a driveline shop before assuming it is the bearing.

4. Then, and only then, consider the diff drop. If the balance is good, the alignment is right, the bearings and boots check out, and you simply want to reduce the CV angle on your 2.5 to 3 inch lift, the kit is a reasonable, cheap piece of insurance for boot life. Buy it for that reason and you will not be disappointed.

Parts and tools

Part numbers go in the table, not inline. Kit prices move; treat these as order of magnitude at research time.

Item	Notes
Diff drop kit, ~1 in spacers	SuperPro TRCHILUXDD (lists GX470/GX460 fitment), ToyTec, SRQ Fabrications; typically 2 spacers, longer bolts, washers, nuts; some include skid plate spacers
East Coast Gear Supply clamshell bushing T8CS-BUSHING (part-time 4WD trucks only)	Replaces driver-side needle bearing 90364-35010 / 90364-35008; see the GX caveat above before ordering for a GX
Needle bearing removal tool	Sold with the bushing kit; owners report the bearing is tight and the proper puller matters
CV boot kit or complete CV axle	If a boot is already torn; reboot vs replace is its own decision (see the companion CV guide by title)
Floor jack and jack stands	To support the differential while the mounts are loose
Torque wrench, 1/2 in drive	Driveline hardware; factory values below
Penetrating oil	Frame-side mount bolts on high-mileage or rust belt trucks
Trim tools or tin snips	Some skid plates need trimming to clear the lowered diff (see install notes)

Install overview

This is a driveway job, about an hour once the truck is in the air. The concept is the same on the GX470 and GX460 since the kit only touches the front differential mounts.

1. Truck on jack stands, front skid plate off. Note how the skid plate relates to the diff; some plates need trimming or the kit’s skid spacers to sit right afterward ^[6].
2. Support the front differential with a floor jack. Do not let it hang on the mounts once the bolts are out.
3. Remove the bolts holding the two front differential supports to the frame. Leave the rear mount alone.
4. Slip a spacer between each front support and the frame.
5. Install the kit’s longer bolts with the supplied washers and nuts. Snug them with the diff supported at its normal position.
6. Torque the support-to-frame bolts to 101 ft lb (137 N.m) for the front No. 1 and No. 2 supports, same on the GX470 and GX460 ^[14].
7. Reinstall the skid plate. Kits that include skid spacers go between the skid and the frame at the rear bolts. One well-documented install needed about 2 inches trimmed off the driver-side front edge of the rear skid plate to clear the lowered diff ^[6]. Test-fit before you tighten.
8. Lower the truck and drive it. Listen for anything new. If a vibration appears that was not there before, the changed driveshaft angle is the suspect, and removing the kit is a valid answer ^[9].

Shadetree notes: the job is mostly access. On rust belt trucks the frame-side bolts are the fight; soak them with penetrating oil the night before. You do not need to drain the diff or disconnect the axles. Keep the factory bolts in a labeled bag in case you ever reverse the job.

Torque reference (factory, verified from the 2013 GX460 manual on file):

Fastener	GX460	GX470
Front diff support (No. 1 / No. 2) to frame	101 ft lb (137 N.m)	101 ft lb (137 N.m)
Front diff support (No. 1) to carrier	137 ft lb (186 N.m)	137 ft lb (186 N.m)
Front diff support (No. 2) to carrier	118 ft lb (160 N.m)	118 ft lb (160 N.m)
Rear diff support (No. 3) to carrier	80 ft lb (108 N.m)	Not verified; check manual

Only the support-to-frame bolts on the two front mounts are touched by the kit. The carrier-side and rear-mount values are listed so you know what not to disturb.

A note on the GX550

The GX550 is a different platform generation with its own front suspension and driveline layout. Diff-drop fitment, geometry, and torque values for the 250 series were not verified in this pass. Treat any GX550 diff-drop claim as UNCERTAIN until it is checked against GX550-specific sources.

Related guides

• Lift Kits & Suspension for the Lexus GX: A Practical Guide
• Do You Need Upper Control Arms With a 2.5 to 3 Inch Lift?
• Why does my front end rumble in 2WD but go quiet in 4WD? (companion guide on the needle-bearing topic, coming soon)
• What PSI Should You Run in Upsized Tires? (GX470, GX460, GX550)

FAQ

Will a diff drop kit fix my vibration? Probably not. The owner record is consistent: it helps CV angles and boot life a little, and it does not cure vibrations. Diagnose balance, alignment, and bearings first ^[1][8].

How much does a diff drop actually change the CV angle? Less than the 1 inch spacer suggests. Because the rear mount stays put and acts as a pivot, one owner’s geometry analysis puts the real drop at the CVs around a third of an inch, roughly 3 degrees ^[7]. Treat that as an estimate, not a spec.

Will it hurt anything? Usually not, but it is not free. You lose about an inch of front ground clearance, the diff mounts get more exposed, and the changed front driveshaft angle has caused vibration for at least one owner ^[9]. A steel skid plate covers most of the risk.

Do I need it with a 2 inch lift? Probably not. The angle change is small and most owners at 2 inches never touch the diff. Spend the money on the alignment.

Do I need longer bolts, or can I reuse the stock ones? Use the longer bolts the kit provides. The spacer adds an inch of stack height the stock bolts were not sized for.

Does the diff drop affect my alignment? No. It does not touch caster, camber, or toe. If the truck needs an alignment, the diff drop is not a substitute ^[2].

What is the ECGS bushing, and do I need it? It is a solid PTFE bushing that replaces the failure-prone driver-side needle bearing in the front differential of part-time 4WD Toyotas (Tacoma, part-time 4Runner, FJ). It is the established cure for the classic rumble that vanishes in 4WD ^[12][13]. Whether it applies to the full-time 4WD GX470/GX460 is not settled; see the GX caveat in the diagnostic section.

Can I remove the kit if I do not like it? Yes. Keep the factory bolts. Several owners have installed it, decided the clearance mattered more, and taken it back out with no harm done ^[8].

Does a diff drop change the gear oil level? It tilts the diff about 3 degrees, which shifts where the oil sits relative to the fill plug. The ring gear splash-lubes the pinion bearings, and 3 degrees will not starve them as long as the oil is filled to the plug level. Check it after the install if it worries you.
